OUR FORMULA

Innovation and simplicity

We do not have flashy slogans and we do not design the best machines in the world, we are not and never will be so presumptuous.
However, in our 35 years working in sector of special foundations we have designed, manufactured and tested products and technologies at plants and worksites, innovating and continuously improving them. Along the years, we have developed a way of thinking that we have no intention to give up, because we know that it is key: listening to our customers and to everyone else who contacted us.

The synthesis of what we have learnt in our thrilling work, which is the core feature of our young company founded in 2017, can be summarized in two words “Innovation” and “Simplicity”.

“Simplicity as innovation has meant for us being able to design and manufacture a range of machines with characteristics such as strength, durability, performance and the right amount of technology content, while complying with safety for your operators, and ease and simplicity of use.”

HOW WE WORK

Our method

1

Experience

At worksites we exchange our experience with that of our customers, while listening and acting
2

Project synthesis

We design drilling rigs that work with different technological applications, always seeking innovation through simplicity
3

Engineering

We meet the needs of Today’s and Tomorrow’s worksites with Modularity and innovative Simplicity
4

Business services

Our team, or our local representatives, assist customers from workshops to worksites
THE RANGE

Our machines

MDT40K

40K
Total weight From 4200 to 4900 kg
Engine power 47 kW
Rotary torque 1400 daNm
Rotary Rotation Speed 100 rpm
Extraction / Crowd force 3.5 kN/3.5 kN
Total weight From 4200 to 4900 kg
Engine power 47 kW
Rotary torque 1400 daNm
Rotary Rotation Speed 100 rpm
Rotary stroke modular min 1170 - max 2200 mm
Extraction / Crowd force 3.5 kN/3.5 kN
Clamp & Breaker 38-340 mm
Undercarriage width 780/1.200 mm + 1.940 mm

MDT40SK

40SK
Total weight 4600 + 3600 kg
Engine power 110 + 8 kW
Rotary torque standard 1400 daNm
Rotary Rotation Speed 128 rpm
Extraction / Crowd force 3.5 kN/ 3.5 kN
Total weight 4600 + 3600 kg
Engine power 110 + 8 kW
Rotary torque standard 1400 daNm
Rotary Rotation Speed 128 rpm
Rotary stroke modular min 1170 - max 2200 mm
Extraction / Crowd force 3.5 kN/ 3.5 kN
Clamp & Breaker max 38- 220 mm
Undercarriage width 780:1200 mm + 1940 mm Power pack

MDT140K

140K
Total weight 32000 kg
Engine power 160 kW diesel or electric
Rotary torque 1500 daNm
Rotary Rotation Speed 132rpm
Extraction / Crowd force 10 kN/ 10kN
Total weight 32000 kg
Engine power 160 kW diesel or electric
Rotary torque 1500 daNm
Rotary Rotation Speed 132rpm
Rotary stroke sub- horizontal modular max 13000
Extraction / Crowd force 10 kN/ 10kN
Clamp & Breaker 38- 240 mm
Undercarriage width 1800 : 2600 mm

MDT80B

80B
Total weight From 9840 to 11500 kg
Engine power 129 kW
Rotary torque standard 1500 daNm
Rotary Rotation Speed 120 rpm
Extraction / Crowd force 7 kN/ 7kN
Total weight From 9840 to 11500 kg
Engine power 129 kW
Rotary torque standard 1500 daNm
Rotary Rotation Speed 120 rpm
Rotary stroke modular min 1200 max 3700 mm
Extraction / Crowd force 7 kN/ 7kN
Clamp & Breaker standard 48-355 mm
Undercarriage width 1800 mm

MDT80V

80V
Total weight From 9000 to 10000 kg
Engine power 129 Kw
Rotary torque standard 1500 daNm
Rotary Rotation Speed 120rpm
Extraction / Crowd force 12 kN / 6kN
Total weight From 9000 to 10000 kg
Engine power 129 Kw
Rotary torque standard 1500 daNm
Rotary Rotation Speed 120rpm
Rotary stroke 3400 mm
Extraction / Crowd force 12 kN / 6kN
Clamp & Breaker standard 48 -355mm
Undercarriage width 1800 mm

MDT200B

200B
Total weight From 17700 to 18600 kg
Engine power 160 Kw
Rotary torque std 3200 daNm
Rotary Rotation Speed 132 rpm
Extraction / Crowd force 10 kN /10 kN
Total weight From 17700 to 18600 kg
Engine power 160 Kw
Rotary torque std 3200 daNm
Rotary Rotation Speed 132 rpm
Rotary stroke 6700 mm
Extraction / Crowd force 10 kN /10 kN
Clamp & Breaker max 114 -440 mm
Undercarriage width 2350 mm

MDT80VEG

80VEG
Total weight 11.500 kg
Engine power 129 Kw
Rotary torque Superiore 1500 daNm/Inferiore 3200 daNm
Rotary Rotation Speed Upper rotary 120 rpm/ Lower rotary 68 rpm
Extraction / Crowd force 10 kN
Total weight 11.500 kg
Engine power 129 Kw
Rotary torque Superiore 1500 daNm/Inferiore 3200 daNm
Rotary Rotation Speed Upper rotary 120 rpm/ Lower rotary 68 rpm
Rotary stroke 3400 mm
Extraction / Crowd force 10 kN
Clamp & Breaker standard 48 - 355
Undercarriage width 1800 mm

MDT230K

230K
Total weight From 24000 to 30000 kg
Engine power 160 kN
Rotary torque min 1500 max 3200
Rotary Rotation Speed 132 rpm
Extraction / Crowd force 10 kN/10kN
Total weight From 24000 to 30000 kg
Engine power 160 kN
Rotary torque min 1500 max 3200
Rotary Rotation Speed 132 rpm
Rotary stroke Vertical module max 6700/sub- horizontal 12000 mm
Extraction / Crowd force 10 kN/10kN
Clamp & Breaker max 114-440 mm
Undercarriage width 2500 mm

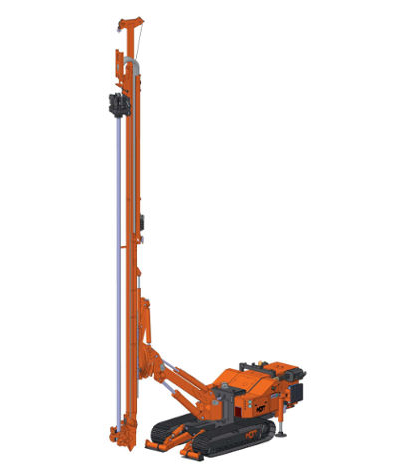

MDT230B

230B
Total weight From 23400 to 27500 kg
Engine power 160 kN
Rotary torque 3200 daNm
Rotary Rotation Speed 132 rpm
Extraction / Crowd force 10 kN/10 kN
Total weight From 23400 to 27500 kg
Engine power 160 kN
Rotary torque 3200 daNm
Rotary Rotation Speed 132 rpm
Rotary stroke 10 kN/10 kN
Extraction / Crowd force 10 kN/10 kN
Clamp & Breaker max 114-440 mm
Undercarriage width 2500 mm

MDT200BEG

200BEG
Total weight 19500 kg
Engine power 160 Kw
Rotary torque Upper rotary 1800 daNm/ Lower rotary 3660 daNm
Rotary Rotation Speed Upper 137 rpm/ Lower68 rpm
Extraction / Crowd force 15 kN / 15kN
Total weight 19500 kg
Engine power 160 Kw
Rotary torque Upper rotary 1800 daNm/ Lower rotary 3660 daNm
Rotary Rotation Speed Upper 137 rpm/ Lower68 rpm
Rotary stroke 5000 mm
Extraction / Crowd force 15 kN / 15kN
Clamp & Breaker triple 48-355 mm
Undercarriage width 2350 mm

MDT300V

300V
Total weight From 32000 to 36000 kg
Engine power 200 kW
Rotary torque 3200 daNm (optional 5500 daNm)
Rotary Rotation Speed 132 rpm
Extraction / Crowd force 20kN /20kN
Total weight From 32000 to 36000 kg
Engine power 200 kW
Rotary torque 3200 daNm (optional 5500 daNm)
Rotary Rotation Speed 132 rpm
Rotary stroke mod 16000 mm max
Extraction / Crowd force 20kN /20kN
Clamp & Breaker 114-440 mm max (optional 580 mm)
Undercarriage width 2500: 3800 mm

MDT640GM

640GM
Total weight 75000 kg
Engine power 160 kW + 132kW elettrico
Rotary torque 1500 daNm
Rotary Rotation Speed 132 rpm
Extraction / Crowd force 132 rpm
Total weight 75000 kg
Engine power 160 kW + 132kW elettrico
Rotary torque 1500 daNm
Rotary Rotation Speed 132 rpm
Rotary stroke sub- horizontal 18000
Extraction / Crowd force 132 rpm
Clamp & Breaker 38 - 240 mm
Undercarriage width 2500 : 3800 mm

MDT40K

40k
Operative weight in JG configuration 4900 kg
Engine Power 47 kw
Crowd force 3.500 kg
Clamp & Breaker 3.500 kg
Operative weight in JG configuration 4900 kg
Max treatment in single passage 6275 mm
Available chuck 60-90 mm
Engine Power 47 kw
Extraction force 340 mm
Crowd force 3.500 kg
Clamp & Breaker 3.500 kg

MDT40SK

40sk
Operative weight in JG configuration 4590 + 3600 kg
Engine Power 110 kw+8 kw
Crowd force 3500 kg
Clamp & Breaker 3500 kg
Operative weight in JG configuration 4590 + 3600 kg
Max treatment in single passage 6275 mm
Available chuck 60-90 mm
Engine Power 110 kw+8 kw
Extraction force 340 mm
Crowd force 3500 kg
Clamp & Breaker 3500 kg

MDT80B

8OB
Operative weight in JG configuration 10,2 - 11 ton
Engine Power 129 kw
Crowd force 7000 kg
Clamp & Breaker 7000 kg
Operative weight in JG configuration 10,2 - 11 ton
Max treatment in single passage 9040 mm
Available chuck 60-90-114 mm
Engine Power 129 kw
Extraction force 420 mm
Crowd force 7000 kg
Clamp & Breaker 7000 kg

MDT80V

80V
Operative weight in JG configuration 9000 kg
Engine Power 129 kW
Crowd force 12.000 kg
Clamp & Breaker 6.000 kg
Operative weight in JG configuration 9000 kg
Max treatment in single passage 9640 mm
Available chuck 60-90-114 mm
Engine Power 129 kW
Extraction force 420 mm
Crowd force 12.000 kg
Clamp & Breaker 6.000 kg

MDT230B

230B
Operative weight in JG configuration 25500 kg
Engine Power 160 kw
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg
Operative weight in JG configuration 25500 kg
Max treatment in single passage 30780 mm
Available chuck 60-90-114-140 mm
Engine Power 160 kw
Extraction force 420 mm
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg

MDT300V

300v
Operative weight in JG configuration 36000 kg
Engine Power 160 kw
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg
Operative weight in JG configuration 36000 kg
Max treatment in single passage 35000 mm
Available chuck 60 -90-114-140 mm
Engine Power 160 kw
Extraction force 420 mm
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg

MDT230K

230K
Operative weight in JG configuration 26750 kg
Engine Power 160 kw
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg
Operative weight in JG configuration 26750 kg
Max treatment in single passage 25180 mm
Available chuck 60-90-114-140 mm
Engine Power 160 kw
Extraction force 420 mm
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg

MDT200B

200B
Operative weight in JG configuration 18000 kg
Engine Power 160 kw
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg
Operative weight in JG configuration 18000 kg
Max treatment in single passage 21440 mm
Available chuck 60-90-114 mm
Engine Power 160 kw
Extraction force 420 mm
Crowd force 10.000 kg
Clamp & Breaker 10.000 kg
Ideas

Special Application

In addition to standard products from our range, we assess the feasibility of specific requests from our customers or special applications and drilling methods in use in various markets.

Construction site

Gallery

service

Customer Care

Delivering your machine does not mean our work has finished, it has just started

When a machine leaves our workshop after completing the tests to start its work life, we at MDT are fully aware that it has a first and last name, and a soul.
It has the names of those who purchased it, whether businessmen or corporate managers, and of those who are going to use it through the years, operators and technician.

With labour, sacrifices, expectations and, we’d like to add and hope for, successes.

Our Customer Care service stands by our customers providing recommendations, maintenance, spares, inspections and assistance to ensure ongoing efficiency.

In our dealerships abroad, the technicians have been trained on our products and are authorized to provide quality services with our same philosophy.
Simplicity and innovation… and the customer always comes first.

PROTECTING VALUE

Second Life

The programme

A drilling rig is an investment of capital, not just work equipment.
Making this capital durable, reliable, technically up to date allows high return on the investment made.

With the Second Life programme we give new life to your drilling rig guaranteeing additional years of productivity and protection of the remaining value.

The certainty of receiving a quotation that is accurate, clear, planned in details, shared and where stages of progress are under control, is a key point of MDT’s “Second Life” programme.

The service includes a final test with a warranty certificate for the parts replaced.
